Although coffee culture started late in the Chinese market, there is a big difference in consumption with overseas countries. However, with the rise of "Generation Z" consumer groups and the rise of coffee culture, coffee consumption penetration and market size continue to grow, and the corresponding demand for coffee machines has also developed rapidly. In order to meet this huge demand in the market, Hitenx launched a simple design of coffee machine product overall solution, the solution is composed of AC-DC power chip and MCU master control two parts, MCU built-in touch module, LED/LCD display driver module, multi-channel PWM output, UART communication interface, ADC with reference voltage source and EEPROM memory module...

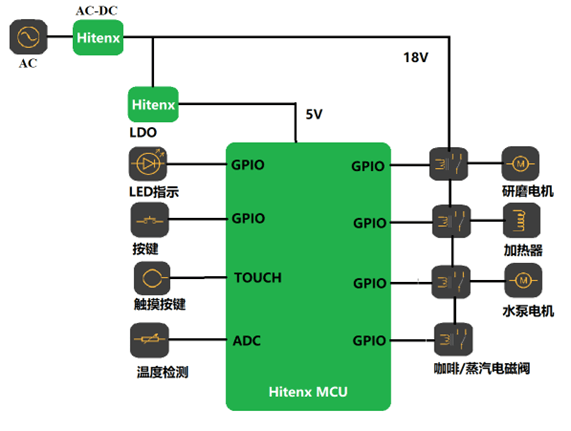

Scheme Topology
Selection Table
- Product Name(W) Function Description Application
- TM52F1376 2T 8051 main control chip, 16K Falsh, 512 byte Sram, 128 byte EEProm, ADC * 24, PWM * 3, UART * 2, IIC, LED/LCD module Electric bicycle instrument, Small appliance, Rice cooker
- TM52eF1375A The TM52 series eF1375A is a new, fast 8051 architecture MCU with built-in 32K FLASH, 1280 Sram, 128 EEPRom, TK * 20, ADC * 16, PWM * 3, LED/LCD modules Small appliance, Rice cooker
- TM52eF1386 The TM52 series eF1386 is a new, fast 8051 architecture MCU with built-in 64K Flash, 4352 Sram, TK * 21 * 2, ADC * 45, PWM * 9, UART * 3, SPI, IIC, LED/LCD modules Small appliance/coffee machine/Rice cooker
Scheme Information
- File Name Version Describe Updated Date Download
